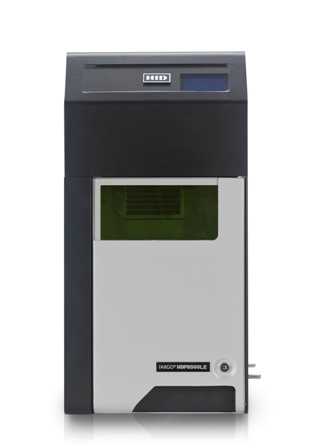

HDP8500LE Fargo Laser Engraving Unit
Own laser engraving unit
What Is FARGO HDP8500LE Industrial Card Laser Engraver?
A new module which, by integrating with a printer / encoder and a laminating module, introduces new security features for laser engraving into ID cards. The HDP8500LE card personalization kit provides HDP printing, laser engraving, smart card coding and customer hologram lamination.
Laser engraving equipment ensures higher security of cards in various programs of their issuance by governmental and state institutions, which bear increased responsibility for the impossibility of forgery or misidentification, ID cards and driver's licenses, health insurance cards, etc.
What is laser engraving?
It is a highly secure method of monochrome card personalization that burns / engraves a motif into the card body. This will provide a trace that is either burned inside the card body or creates a tactile effect laser engraving on the surface (which is palpable).
Both represent highly resistant personalization, the falsification or manipulation of which is practically impossible.
Video
Print and laser dating
SPECIFICATIONS
Warranty: Printer: 3 years; Laser module: 2 years; Laser diode: 5,000 hours
Laser Type: 7W air cooled DPSS laser
Laser Personalization Types: Subsurface and tactile laser engraving; microtext; MLI/CLI
Communication Interface: Optional Ethernet LAN
Registration Capability: Camera Vision System
Laser Speed: Up to 2300 cards per 8-hour shift depending on card coverage of laser data
Power Input: 100-240 VAC, 8.5 A MAX, 50 Hz - 60 Hz
DIMENSIONS
Dimensions: 13.5" H x 15.0" W x 14.0" D (343mmH x 381mmW x 356mmD)
Dimensions and Weight (printer) 15.5" H x 28.2" W x 14.0" D (394mmH x 716mmW x 356mmD); 61 lbs / 27.7 kg
Dimensions and Weight (engraver) 20.5" H x 10.0" W x 20.0" D (521mmH x 254mmW x 508mmD); 88 lbs / 40.0 kg
Dimensions and Weight (laminator) 13.5" H x 15.0" W x 14.0" D (343mmH x 381mmW x 356mmD); 29 lbs / 13.2 kg
SYSTEM SECURITY STANDARDS
Password Protection
Lockable Housings
Network Data Encryption
Supported Software Drivers: Windows® XP / Server 2003 / Vista (32 bit & 64 bit) / Server 2008 R2 (64 bit) / 7 (32 & 64 bit); Mac OS X v10.4 / v10.5; and Linux
CARD STANDARDS
Materials: Polycarbonate cards recommended; accepts ABS, PC, PET, PETG, composite
Card Size: CR-80 only
Card Thickness: 30 mil to 50 mil (0.762 mm to 1.27 mm)
